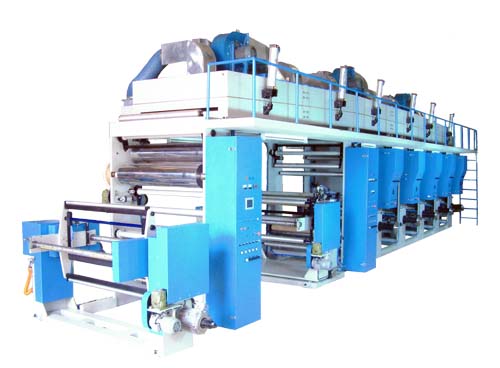

ROTOGRAVURE PRINTING MACHINE |
||||||||||||||||||||||||||||||||
GRV Series For Decorative and Special List |
| Application Printing for Decorative & Specialties |
| From our vast experience in special coating, we can provide systems for the production |
| of every kind of pressure sensitive |
Imitation woodgrain laminates , Wall paper |
| FEATURE : |
 High efficient dryer with combination of nozzles and perforates nozzles |
| Auto Tension Controller |
| Low torque guide roller to suitable for high speed printing on thin web |
| Printing cylinder shaft-less air chuck sytem for quick change over the job with trolley |
| Pneumatically pressured doctor blade for smooth printing |
| Eliminating troblesome operational control, this machine employs a PLC controller for user friendly operation |
SPECIFICATIONS |
| Model | GRV–1000 |
GRV – 1300. |
| Max. Printing Width | 1000 mm. |
1300 mm. |
| Max. Diameter For Unwind | 600 – 800 mm. |
|
| Max. Diameter For Rewind | 600 – 800 mm. |
|
| Dia. Of Printing Cylinder | 120 – 300 mm. |
|
| Heater Source | Electric heater / Gas Burner |
|
